Faisal Ahmed Pasha Mohammed

What Really Happens When You Use a /* Filter in Tomcat? A Deep Dive

1. Why Use a Global /* Filter in Web Applications?

Normally, when we build web applications that require authentication and authorization mechanisms to serve resources to users, we often use a filter that intercepts all incoming requests to a web application. Such a filter typically uses the URL pattern /*. Imagine a scenario where your web application serves users with a login form on the default index page. Through this form, we want to enforce authentication before granting access to various resources.

In another scenario, we might want to redirect users to a login page after a session timeout, log all requests to the application, or compress a file before sending it to the client.

In such cases, we prefer a filter over a servlet because of the separation of concerns and centralized control. Servlets are better suited for request handling and content generation, while filters excel at gate-keeping and post-processing. Servlets deal with the core business logic, whereas filters handle cross-cutting concerns such as logging, security, and request or response modification.

Filters can also be chained to process the entire request–response cycle in a modular and layered manner. For all these reasons, filters are a powerful tool in Java web applications—and we often rely on a catch-all filter mapped to the pattern /*.

2. The Impact of Mapping a Filter to /* on Request Handling

Let’s develop a simple web-app to see how a catch-all filter works. I’m using NetBeans IDE 25. You may use your preferred choice of IDE. I’ve also downloaded Apache Tomcat version 11.0.9 and unzipped it at C:\tomcat1109 on my PC.

Using NetBeans I’ve created a web application project and named it InterceptAllApp. While creating the project I specified the context of the web-app as interceptallapp. Thus, when we run the newly created web-app, it’ll be available at http://localhost:8080/interceptallapp/. When we run the web-app we shall see similar output like shown below:

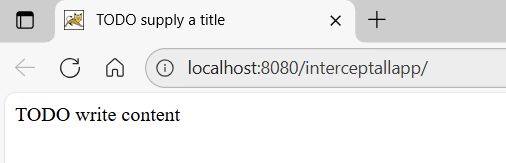

That’s the default index.html being served. So far so good.

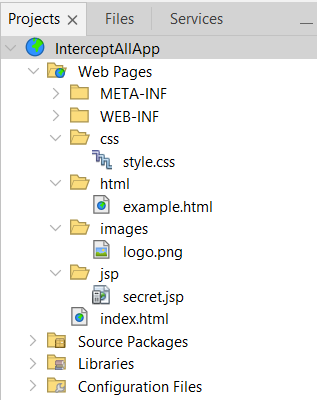

Now, let’s create a few resources as shown in the image below:

First, I’ve created four folders - css, html, jsp, and images.

Then I created the following files:

The css, html, and images folders serve static assets. And the jsp folder has dynamic files - the JSPs.

Let’s now move ahead and create a catch-all filter called InterceptAllFilter. We’ll display a message indicating the request was blocked by the filter.


public class InterceptAllFilter implements Filter {

    public void doFilter(ServletRequest request, ServletResponse response,
            FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;
        response.setContentType("text/html");
		response.getWriter().println("Your request to "+this.getFullURL(req)+" was blocked by /* Filter");
    }

    //A helper method to obtain the requested URL
    public String getFullURL(HttpServletRequest request) {
        String scheme = request.getScheme();             // http or https
        String serverName = request.getServerName();     // localhost, domain
        int serverPort = request.getServerPort();        // 8080, etc.
        String contextPath = request.getContextPath();   // /app
        String servletPath = request.getServletPath();   // /login.html
        String pathInfo = request.getPathInfo();         // extra path (if any)
        String queryString = request.getQueryString();   // ?lang=en

        StringBuilder url = new StringBuilder();
        url.append(scheme).append("://").append(serverName);

        if ((scheme.equals("http") && serverPort != 80) ||
            (scheme.equals("https") && serverPort != 443)) {
            url.append(":").append(serverPort);
        }

        url.append(contextPath).append(servletPath);

        if (pathInfo != null) {
            url.append(pathInfo);
        }

        if (queryString != null) {
            url.append("?").append(queryString);
        }

        return url.toString();
    }
}

The web.xml:

<filter>
        <filter-name>InterceptAllFilter</filter-name>
        <filter-class>filters.InterceptAllFilter</filter-class>
</filter>
<filter-mapping>
    <filter-name>InterceptAllFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

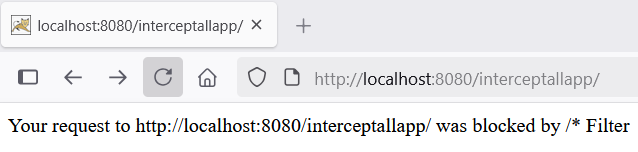

The /* filter works as expected—it intercepts and blocks all incoming requests, including those for the default index.html page, unless explicitly allowed.

Let’s allow the default page:

public void doFilter(ServletRequest request, ServletResponse response,
            FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;

        String uri = req.getRequestURI();          // e.g., /webapp/
        String ctx = req.getContextPath();         // e.g., /webapp
        String path = uri.substring(ctx.length()); // e.g., /
        if (path.equals("/")) {
        	System.out.println("Allowing the URL:" + this.getFullURL(req));
            chain.doFilter(request, response);
            return;
        }
        System.out.println("Blocking the URL:" + this.getFullURL(req));
        response.setContentType("text/html");
        response.getWriter().println("Your request to " + this.getFullURL(req) + " was blocked by /* Filter");
}

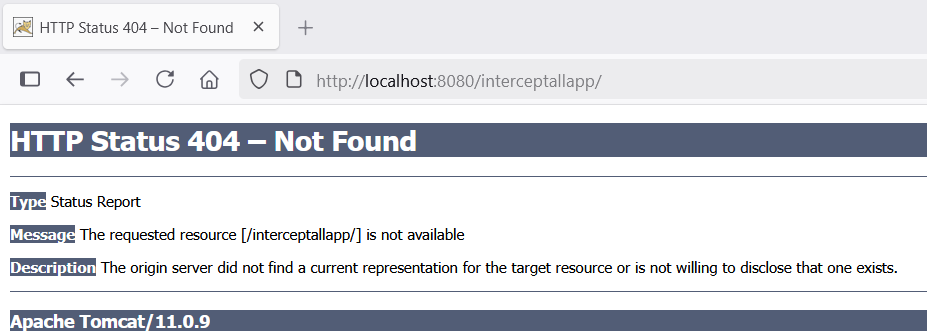

It didn’t work because even though we allowed /, Tomcat didn’t automatically map this to index.html unless it was explicitly declared in the welcome-file-list.

We can make it work by declaring the index.html as a welcome file in the web.xml as shown below:

<filter>
    <filter-name>InterceptAllFilter</filter-name>
    <filter-class>filters.InterceptAllFilter</filter-class>
</filter>
<filter-mapping>
    <filter-name>InterceptAllFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>
<welcome-file-list>
    <welcome-file>index.html</welcome-file>
</welcome-file-list>

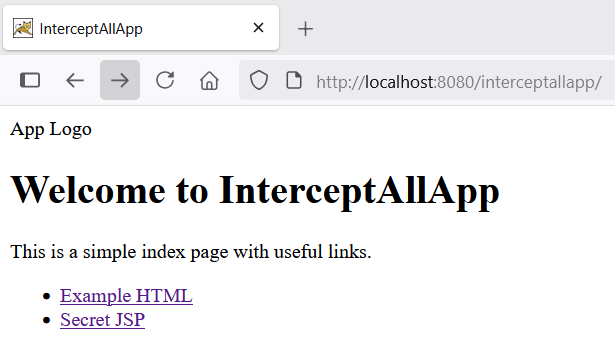

This tells Tomcat to serve index.html when a user visits /interceptallapp/. And it works now:

But, we see that logo and HTML styles are missing.

3. Why Do Images and CSS Sometimes Fail to Load After Adding a /* Filter?

From the Tomcat logs, I see that the filter has allowed /index.html and blocked everything else:

Allowing the URL: http://localhost:8080/interceptallapp/index.html
Blocking the URL: http://localhost:8080/interceptallapp/css/style.css
Blocking the URL: http://localhost:8080/interceptallapp/images/logo.png

Because the filter catches everything /*, we need to make sure the filter lets static resources like images and stylesheets pass through so that the DefaultServlet can serve them. Let's modify the doFilter()` method:

if (path.equals("/")|| path.endsWith(".png") || path.endsWith(".css")) {
        System.out.println("Allowing the URL:" + this.getFullURL(req));
        chain.doFilter(request, response);
        return;
}

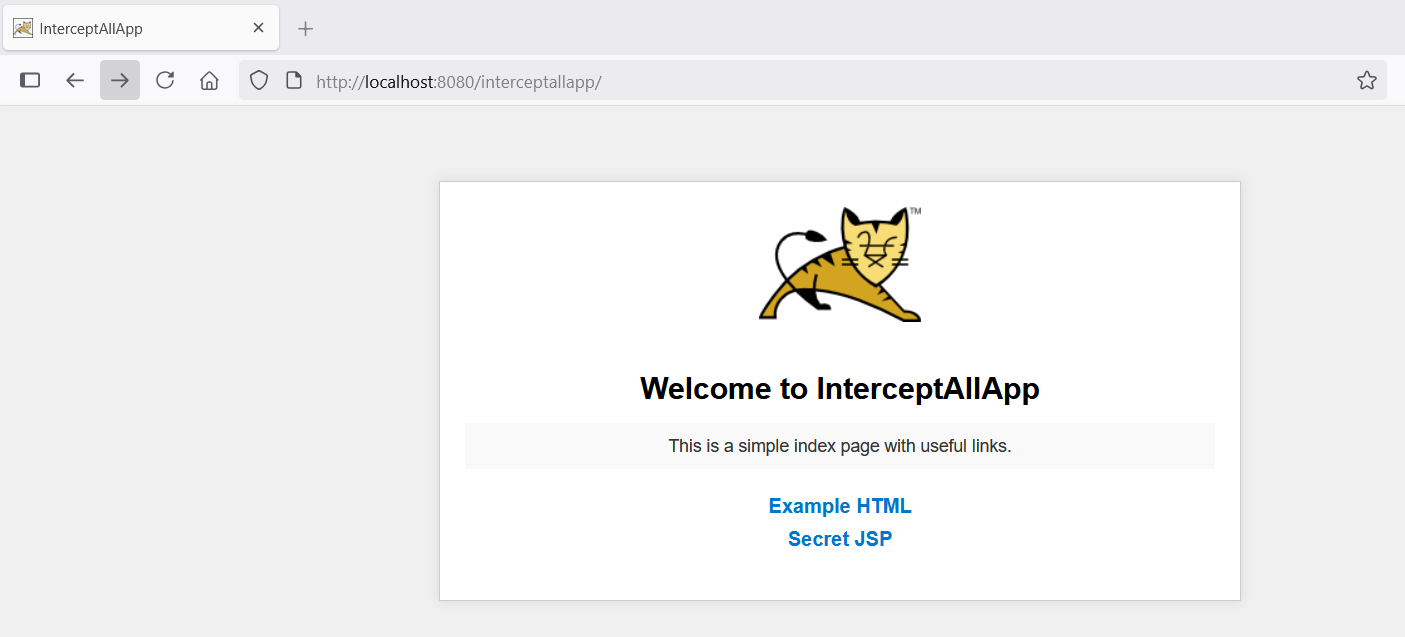

And that works, as shown below - logo.png and style.css were allowed:

Note that the links to example.html and secret.jsp still don’t work. Why? Let’s find out.

So far:

Now that we’ve seen the problem, let’s look at who is responsible for serving these static files in Tomcat.

4. Introducing Tomcat’s DefaultServlet: The Static Resource Server

Straight from the Tomcat docs: The default servlet is the servlet which serves static resources as well as serves the directory listings (if directory listings are enabled).

The DefaultServlet can be found declared in C:\tomcat1109\conf\web.xml. Because I’ve installed Tomcat at C:\tomcat1109. This servlet is responsible for delivering static resources such as .html, .css, .js, and images. It does not handle dynamic content like .jsp.

<servlet>
    <servlet-name>default</servlet-name>
    <servlet-class>
      org.apache.catalina.servlets.DefaultServlet
    </servlet-class>
    <init-param>
        <param-name>debug</param-name>
        <param-value>0</param-value>
    </init-param>
    <init-param>
        <param-name>listings</param-name>
        <param-value>false</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
</servlet>

...

<servlet-mapping>
    <servlet-name>default</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>

We can see that the DefaultServlet is mapped to the URL pattern /. Thus, it served the index.html because the file was declared as a welcome file. Open the web.xml shown above and modify the debug parameter value from 0 to 1 or 11. Restart the Tomcat server and open Tomcat’s logs (C:\tomcat1109\logs\localhost.2025-07-31.log) to see the DefaultServlet serving static content:

31-Jul-2025 19:31:40.085 INFO [http-nio-8080-exec-9] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveResource:  Serving resource '/index.html' headers and data
31-Jul-2025 19:31:40.085 INFO [http-nio-8080-exec-9] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentType='text/html'
31-Jul-2025 19:31:40.085 INFO [http-nio-8080-exec-9] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentLength=891
31-Jul-2025 19:31:40.210 INFO [http-nio-8080-exec-1] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveResource:  Serving resource '/css/style.css' headers and data
31-Jul-2025 19:31:40.211 INFO [http-nio-8080-exec-1] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentType='text/css'
31-Jul-2025 19:31:40.211 INFO [http-nio-8080-exec-1] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentLength=973
31-Jul-2025 19:31:40.218 INFO [http-nio-8080-exec-2] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveResource:  Serving resource '/images/logo.png' headers and data
31-Jul-2025 19:31:40.220 INFO [http-nio-8080-exec-2] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentType='image/png'
31-Jul-2025 19:31:40.220 INFO [http-nio-8080-exec-2] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentLength=8410
31-Jul-2025 19:31:40.245 INFO [http-nio-8080-exec-6] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveResource:  Serving resource '/favicon.ico' headers and data
31-Jul-2025 19:31:40.247 INFO [http-nio-8080-exec-6] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentType='image/x-icon'
31-Jul-2025 19:31:40.247 INFO [http-nio-8080-exec-6] org.apache.catalina.core.ApplicationContext.log default: DefaultServlet.serveFile:  contentLength=21630

Note that DefaultServlet serves static content only when the filter passes control using chain.doFilter().

5. How to Let DefaultServlet Serve Static Content Despite a /* Filter

To avoid static content being blocked by the filter, we need to explicitly allow static content to pass through.

String uri = req.getRequestURI();          // e.g., /interceptallapp/index.html
String ctx = req.getContextPath();         // e.g., /interceptallapp
String path = uri.substring(ctx.length()); // e.g., /index.html

if (path.equals("/") ||
    path.equals("/index.html") ||
    path.contains("html/") ||
    path.endsWith(".css") ||
    path.endsWith(".js") ||
    path.endsWith(".png") ||
    path.endsWith(".jpg") ||
    path.endsWith(".ico")) {
    chain.doFilter(request, response); // Let DefaultServlet handle it
    return;
}

When a filter calls HttpServletResponse.sendRedirect() or otherwise commits the response without invoking chain.doFilter(), the request processing stops at the filter, so the DefaultServlet never gets a chance to serve static resources.

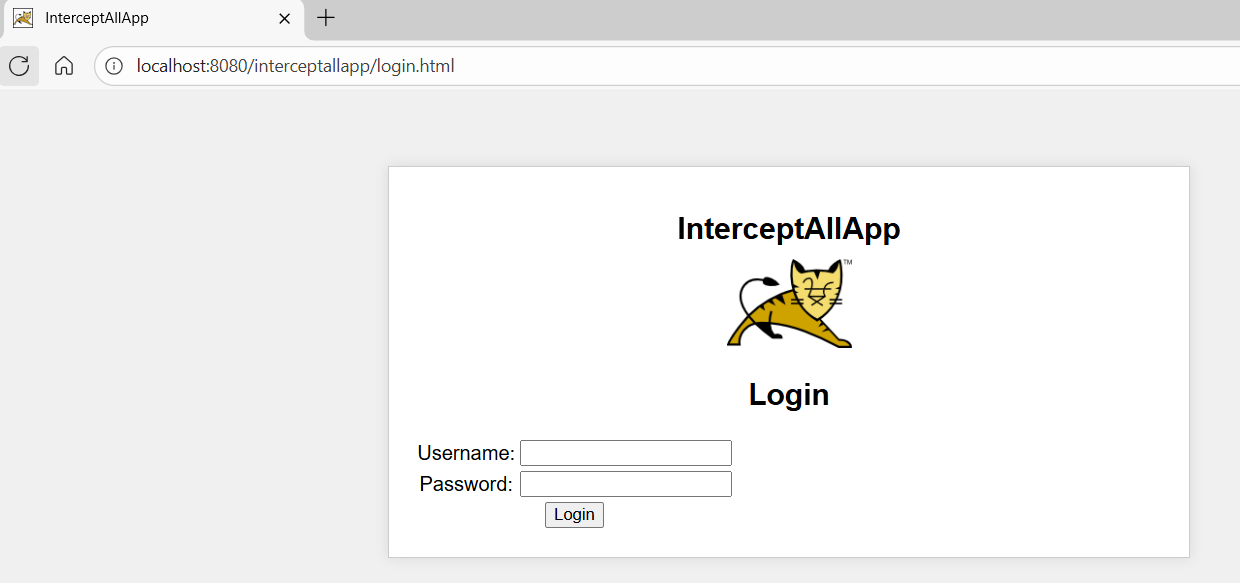

In our example we wanted the JSP file secret.jsp remain only accessible after a successful login. So, we redirect the user to login.html page from the filter:

public void doFilter(ServletRequest request, ServletResponse response,
            FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;

        String uri = req.getRequestURI();          // e.g., /webapp/
        String ctx = req.getContextPath();         // e.g., /webapp
        String path = uri.substring(ctx.length()); // e.g., /
        if (path.equals("/")||path.endsWith(".png")||path.endsWith(".css") || path.contains("html/") || path.contains("login.html")) {
            System.out.println("Allowing the URL:" + this.getFullURL(req));
            chain.doFilter(request, response);
            return;
        }
        System.out.println("Blocking the URL:"+this.getFullURL(req));
        if(path.contains("jsp/")) {
            res.sendRedirect("../login.html");
            return;
        }
        response.setContentType("text/html");
        response.getWriter().println("Your request to " + this.getFullURL(req) + " was blocked by /* Filter");
    }

6. Conclusion

Using a global /* filter gives you centralized control over all incoming requests. However, it requires careful handling to ensure that static resources are not inadvertently blocked. By understanding how Tomcat’s DefaultServlet works and how to configure welcome files and filter logic properly, you can build secure, robust, and user-friendly Java web applications.
